큐브뷰는 다양한 지역과 환경조건에 맞춰 실내외 환경 모두에서 고품질 서비스가 가능한
이동통신 안테나 제품을 제공하고 있습니다.

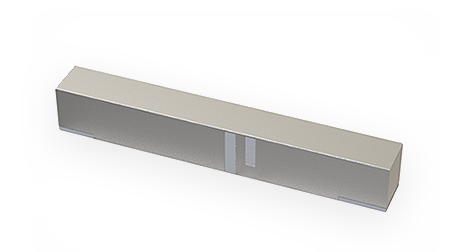

| Model | CC40D9 |
|---|---|
| Application | LTE |
| Size[mm] | 40.0 X 5.0 X 6.0 | Type | Monopole |
|---|---|---|---|
| Frequency[MHz] | 698 ~ 798 | Gain[dBi] | 1.4(typical) |
| 824 ~ 960 | 0.7(typical) | ||
| 1710 ~ 2170 | 3.2(typical) | ||
| 2300 ~ 2400 | 3.8(typical) | ||
| 2490 ~ 2690 | 4.2(typical) | ||
| V.S.W.R | 3.5 max. (typical) | Polarization | Linear |

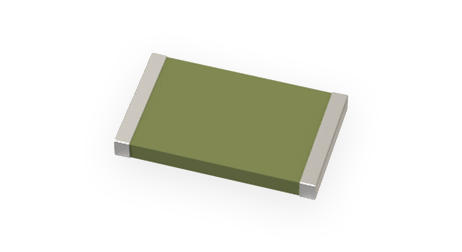

| Model | CB501 |
|---|---|
| Application | NB-IoT |
| Size[mm] | 5.0 X 3.0 X 0.5 | Type | TELA |
|---|---|---|---|
| Frequency[MHz] | 1920 ~1980 2110 ~2170 |
Gain[dBi] | 2.0(typical) 1.0(typical) |
| 1710 ~1785 1805 ~1880 |
1.4(typical) 1.6(typical) |
||
| V.S.W.R | 3.5 max. (typical) | Polarization | Linear |

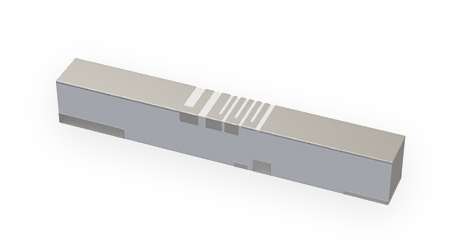

| Model | CX40D9 |
|---|---|
| Application | Multi-Band |
| Size[mm] | 40.0 X 5.0 X 6.0 | Type | Monopole |
|---|---|---|---|
| Frequency[MHz] | 617 ~960 | Gain[dBi] | 0.5(typical) |
| 1710 ~2170 | 2.9(typical) | ||
| 2300 ~2690 | 3.0(typical) | ||
| 3300 ~4200 | 2.5(typical) | ||
| 4400~5000 | 0.7(typical) | ||
| 5150 ~5925 | -1.3(typical) | ||
| V.S.W.R | 3.5 max. (typical) | Polarization | Linear |
