ODM/유통

ODM/유통

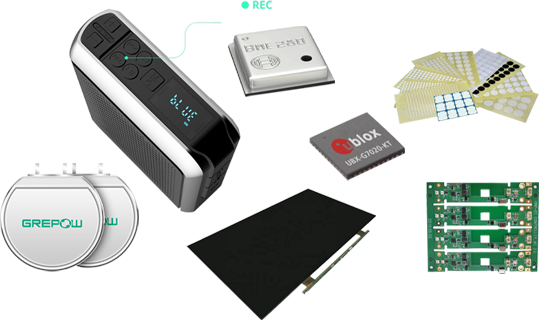

다양한 제품 개발을 통해 쌓아온 통신장비 기술을 바탕으로, 우리는 고객사에 전자 제품에 대한 토탈 솔류션 제공을 목표로 하고 있으며, 이에 ODM 제품 개발과 반도체, 베터리, LCD 등의 전자 부품을 공급하고 있습니다. IOT 기술의 발달과 소영화 되는 제품 군의 증가는 통신기술의 노하우가 있는 우리와 고객사가 더 많은 시너지를 낼 수 기회가 올 것으로 생각합니다. 또한 다년간 쌓아온 서플라이체인을 통해 양질의 제품을 경쟁력있게 공급할 수 능력 또한 준비되어 있으니 앞으로도 관심 부탁 드립니다.

다양한 제품 개발을 통해 쌓아온
통신장비 기술을 바탕으로

우리는 고객사에 전자 제품에 대한 토탈 솔루션 제공을 목표로 하고 있으며,
이에 ODM 제품 개발과 반도체, 배터리, LCD 등의 전자 부품을 공급하고 있습니다.
IOT 기술의 발달과 소영화되는 제품군의 증가는 통신기술의 노하우가 있는
우리와 고객사가 더 많은 시너지를 낼 수 있는 기회가 올 것으로 생각합니다.

또한 다년간 쌓아온 서플라이체인을 통해 양질의 제품을 경쟁력있게 공급할 수 능력 또한 준비되어 있으니 앞으로도 관심 부탁 드립니다.

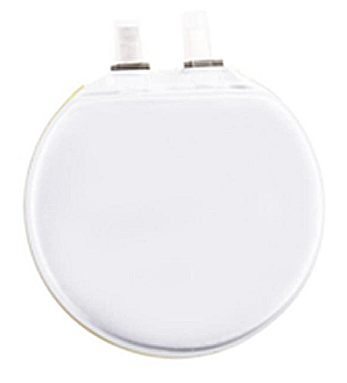

Battery GRP433736-1C-1S1P-3.8V-540mAh
Battery

GRP433736-1C-1S1P-3.8V-540mAh

General

This document describes the Product Specification of the Lithium-Polymer (LIP) rechargeable battery pack

Features

Long cycle life : After 1000 cycle, the round batteries capacity maintained over 80% High energy density: Specific energy density up to 460Wh/L light weight Fast charge ability: Support 3C~5C fast charge

Specifi
cations

540mAh@ 0.2C Discharge end voltage3.0V
PACK Voltage: 3.75~3.90V（cell 3.75~3.90V
Dimensions: MAX（T*W*H）: 4.4*37.1*37.5mm(As of shipment)

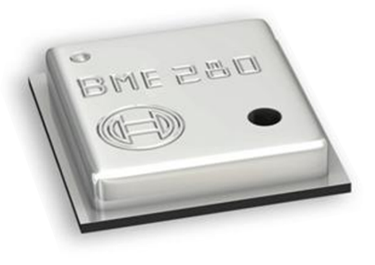

Sensor BME280
Sensor

BME280

General

The BME280 is as combined digital humidity, pressure and temperature sensor based on proven sensing principles. The sensor module is housed in an extremely compact metal-lid LGA package with a footprint of only 2.5 × 2.5 mm² with a height of 0.93 mm. Its small dimensions and its low power consumption allow the implementation in battery driven devices such as handsets, GPS modules or watches.

Features

Humidity sensor and pressure sensor can be independently enabled / disabled Register and performance compatible to Bosch Sensortec BMP280 digital pressure sensor. RoHS compliant, halogen-free

Specifications
Parme ter Symbol Condiron Min Typ Max Unit
Supply Voltage Internal Domains VDD ripple max. 50 mVpp 1.71 1.8 3.6 V
Supply Voltage I/O Domain VDDIO   1.2 1.8 3.6 V
Sleep Current VDDSL     0.1 0.3 μA
Standby current
(inactive period of normal mode) 		VDDSB     0.2 0.5 μA

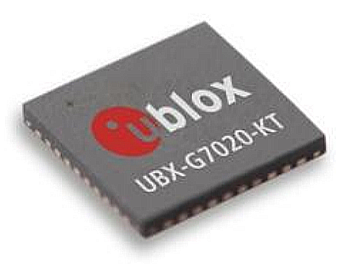

Semiconductor UBX-G7020-KT
Semiconductor

UBX-G7020-KT

General

Featuring a single die solution, low power consumption and low costs, the UBX-G7020 GPS/GNSS chips are multi-GNSS (GPS, GLONASS, Galileo and QZSS) positioning chips developed to meet the requirements of an extensive range of applications and end-products.

Features

-148 dBm coldstart acquisition sensitivity and -162 dBm tracking sensitivity up to 10 Hz update rate. Faster acquisition with AssistNow Autonomous Supports u-blox’ AssistNow Online / AssistNow Offline A-GPS services and is OMA SUPL compliant. Supports GLONASS and is ready for Galileo

Specifications
Parme ter Symbol
Receiver type

56-channel u-blox 7 engine
GPS L1C/A SBAS L1C/A
QZSS L1C/A
Galileo E1B/C1


Time-To-First-Fix2

1
Cold Start
Warm Start
Hot Start
Aided Starts3

TCXO
29 s
28 s
1 s
5 s

Crystal
30 s
28 s
1 s
5 s

Sensitivity4

1
Tracking & Navigation
Reacquisition
Cold Start
Warm Start
Hot Start

TCXO
-162 dBm
-160 dBm
-148 dBm
-148 dBm
-156 dBm

Crystal
-161 dBm
-160 dBm
-147 dBm
-148 dBm
-155 dBm

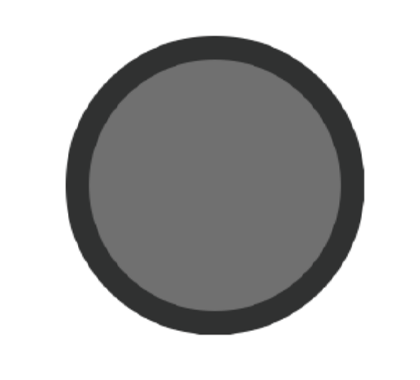

Acoustic Vent 30PN
Acoustic Vent

30PN

General

30PN all of raw material are imported from United States,
with stable performance, long time service life,
higher performance of waterproof and acoustic permeable etc feature,
Client’s requirements can be available

Features

High efficient dustproof and waterproof and acoustic permeable, up to IP67
The sound quality is clear and sound volume loss is low.
Simple structure, easy installation, low cost

Specifications
Item Result
Model 30PN
color gray
IP Rating IP67
High low temperature -40°C~80°C
Acoustic loss 1~2DB
Corrosion-resistant PH: 1~14
Thickness 0.015~0.025mm

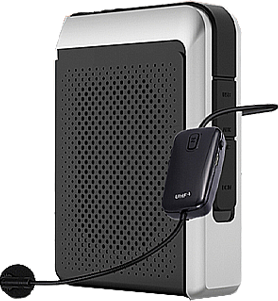

Voice speakerphone CUBE-AMP200
Voice speakerphone

CUBE-AMP200

General

This is a 30W high performance amplifier. It can be used in a variety of fields and can clearly convey your voice. Of course, it can also be used as a speaker.

Features

Many classroom teachers in the school will not interfere at the same time. The wireless version supports of UHF wireless microphones You can play Bluetooth or U disk memory card when playing music Wired headsets can be worn not only on the head, but also on the neck Touch the button, easy to use, dust and splash proof

Specifications
Model Audio Amplifier & Walkie Talkie
Size Dimentions 135 x 101 x 37 (mm)
weight 382g (including built-in lithium battery)
Battery 18650 lithium battery 3.7V / 4400mAh
changing time 6 Hours
FM radio receiving frequency range 87.5MHZ-108MHZ
Max Output 30W
Bluetooth Bluetooth version 5.0
TFT-LCD HV320FHB-N10
TFT-LCD

HV320FHB-N10

General

HV320FHB-N10 is a color active matrix TFT LCD MDL using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This open cell has a 31.51 inch diagonally measured active area with FHD

Features

LVDS interface with 2 pixel / clock
High-speed response / Low color shift image quality
8-bit color depth, display 16.7M colors
High luminance and contrast ratio, low reflection and wide viewing angle

Specifi
cations

Active area : 698.4(H) × 392.85 (V)
Number of pixels : 1920(H)×1080(V)
Interface: LVDS
Luminance : 1500nit
