반도체장비

소재 및 부품

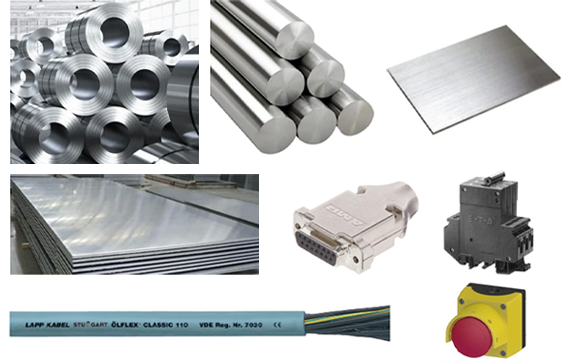

우리는 반도체장비에 사용하고 있는 소재 및 부품을 유통하고 있습니다. 전사 고객의 신뢰를 최우선으로 생각하며, 적질의 제품을 빠르고 경쟁력 있게 공급하기 위해 많은 노력을 하고 있습니다. 스테인러스 스틸 및 니켈 기반 합금 제품을 유통하고 있으며,반도체장비에 적용되는 고품질 특수강을 중심으로, 고온 다습한 가혹한 제조환경에서도 부식성 및 마모에 강한 특수강을 공급합니다.

큐브뷰는 반도체장비에 사용하고 있는 소재 및 부품을
유통하고 있습니다.

전사 고객의 신뢰를 최우선으로 생각하며, 적질의 제품을 빠르고 경쟁력 있게 공급하기 위해
많은 노력을 하고 있습니다.
스테인러스 스틸 및 니켈 기반 합금 제품을 유통하고 있으며, 반도체장비에 적용되는 고품질 특수강을 중심으로,
고온 다습한 가혹한 제조환경에서도 부식성 및 마모에 강한 특수강을 공급합니다.

또한 해외 유수 반도체 부품들의 대리점들을 통해 Assembly와 Parts들도 제안합니다.

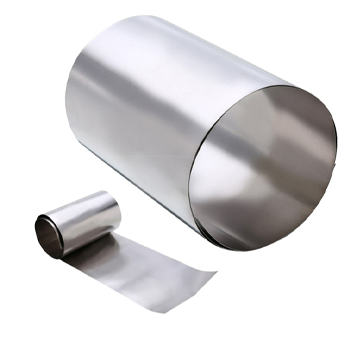

INCONEL 625
INCONEL 625

INCONEL 625

General

It has excellent corrosion resistance to various corrosive media in oxidation and reduction environments
Excellent resistance to pitting corrosion and crevice corrosion, and will not produce chloride ion stress corrosion cracking
Excellent resistance to inorganic acid corrosion, such as nitric acid, phosphoric acid, sulfuric acid, hydrochloric acid and sulfuric acid and hydrochloric acid mixed acid

Specifications
% Ni Cr Mo Fe C Mn Si P S Co Nb+Ta Al Ti
minimum 58.0 20.0 8.0
the largest   23.0 10.0 5.0 0.10 0.50 0.50 0.015 0.015 1.00 4.15 0.40 0.40

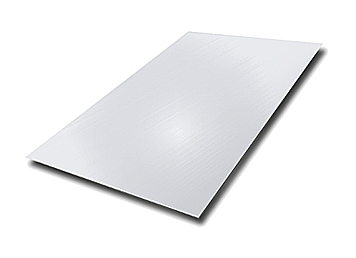

Hastelloy C22
Hastelloy C22

Hastelloy C22

General

Hastelloy C22 alloy is an all-round nickel-chromium-molybdenum-tungsten alloy, which has better comprehensive corrosion resistance than other nickel-chromium-molybdenum alloys (including Hastelloy C276, C4 and Inconel 625). Hastelloy C22 alloy has good resistance to pitting corrosion, crevice corrosion and stress corrosion cracking. It has excellent resistance to oxidation in aqueous media, including wet chlorine, nitric acid containing chloride ions, or mixtures of oxidizing acids.

Specifications
% Ni Cr Mo Fe W Co C Mn Si P S V
minimum Margin 20.0 12.5 2.0 2.5
the largest 22.5 14.5 6.0 3.5 2.5 0.015 0.50 0.08 0.020 0.020 0.35

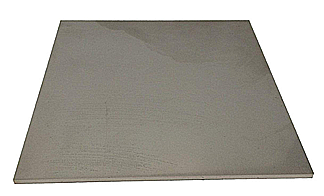

INCONEL 600
INCONEL 600

INCONEL 600

General

Inconel 600 can prevent corrosion and high temperature, and high strength, easy processing. Resistant to chloride ion stress corrosion cracking, sulfide and oxidizing media in high temperature environments. In formic acid, acetic acid, stearic acid and other organic acids, it has good corrosion resistance, and has medium corrosion resistance in inorganic acid.

Specifications
% Ni Cr Fe C Mn Si S Cu
minimum 72.0 14.0 6.0
the largest   17.0 10.0 0.15 1.00 0.50 0.015 0.50

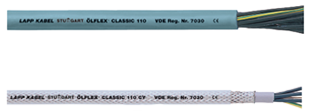

OLFLEX® Classic 110/ 110 CY
OLFLEX® Classic 110/ 110 CY

OLFLEX® Classic 110/ 110 CY

General

OLFLEX® Classic 110 is a multi-conductor, flexible control cable designed for use in all electrical equipment in dry, damp and wet conditions. OLFLEX® Classic 110 CY is a shielded multi-conductor, flexible control cable designed for use in all electrical equipment in dry, damp and wet conditions. An overall tinned copper braid is recommended whenever electrical

Specifications
Part Number Number of Conductors Nominal Outer Diameter Approx. Weight
includes ground inches mm lbs/mft kg/km
21 AWG (16/32) 0.50 mm2
1119752 2 .89 4.8 24 35
1119003 3 .201 5.1 28 42
1119004 4 .224 5.7 36 54
1119005 5 .244 6.2 42 63
1119007 7 .264 6.7 54 81
1119012 12 .350 8.9 88 131
1119018 18 .413 10.5 126 188
1119025 25 .488 12.4 175 261
1119035 35 .571 14.5 239 356
1119052 52 .681 17.3 347 517
1119065 65 .772 19.6 433 644
1119080 80 .831 21.1 524 780
1119100 100 .929 23.6 655 975

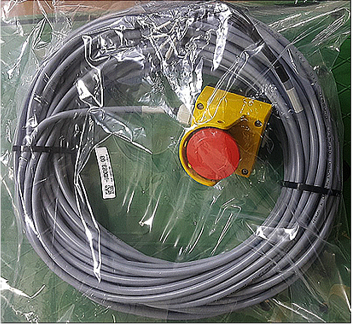

3SB3801-2EA30-0CC0
3SB3801-2EA30-0CC0

3SB3801-2EA30-0CC0

General

Enclosure for command devices, 22 mm, round, enclosure material metal, enclosure top part yellow, with protective collar, for 5 padlocks, 1 control point, A=emergency stop mushroom pushbutton red, 60 mm, rotate to unlatch, 2 NC, spring-loaded terminal, floor mounting Top and bottom 1 x M20 each !!! Phased-out product !!! Successor is SIRIUS ACT 3SU1

Specifications
product brand name SIRIUS
Enclosure
design of the housing Enclosure for command and signaling devices
with standard equipment
shape of the enclosure front Square
material of the enclosure metal
number of command points 1
product component protective collar Yes
color of the enclosure top part yellow
delivery state
• as a kit • pre-wired on strip terminal 		no no
