KR

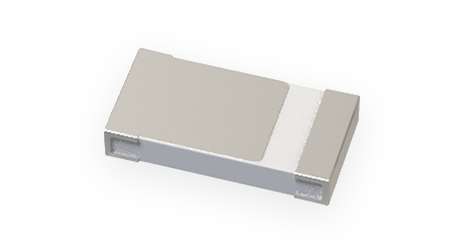

Chip Antenna
WiFi / ZigBee / Bluetooth
| Model | AA055U |
|---|---|
| Application | Wi-Fi / ZigBee / Bluetooth |
Specification
| Size[mm] | 3.2 X 1.6 X 0.5 | Type | TELA |
|---|---|---|---|
| Frequency[MHz] | 2400 ~2500 | Gain[dBi] | 1.8(typical) |
| V.S.W.R | 2.0 max. (typical) | Polarization | Linear |
Communication
Short-range communication
Cubeview provides high-quality antenna products that perform
exceptionally well at close range and offers tailored solutions using
technologies such as Wi-Fi and Bluetooth to meet your specific requirements.

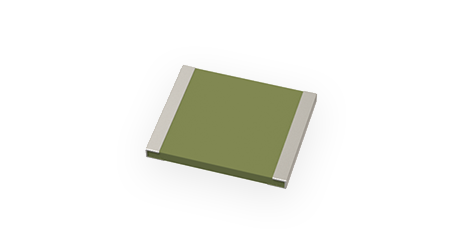

Chip Antenna
UWB
| Model | CR601 |
|---|---|
| Application | UWB |
Specification
| Size[mm] | 6.0 X 5.0 X 0.5 | Type | Horizontal |
|---|---|---|---|
| Frequency [MHz] | 6000 ~ 8000 | Gain[dBi] | 6.3 (typical) |
| V.S.W.R | 3.0 max. (typical) | Polarization | Linear |
