External Antenna

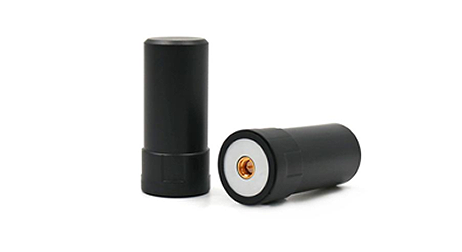

GPS Antenna

GPS
Model ZW-HAY701
Application BDS, GPS, GLONASS, GALILEO
Structural Characteristics
Size[mm] Ø37.7 X 58.6 Connector SMA-J
Antenna Specification
Frequency
Range		 L1 / L5 / E1 / E5A B1 / B2 / G1 / G2 Gain ≥ 2.0 dBi Antenna
AR		 ≤ 3 dB VSWR ≤ 1.5 dB
Azimuth
Coverage		 360° Polariza
tion		 R.H.C.P Portimp
edance		 50Ω Phase
center
error		 5mm
Electrical Specification
LNAGain 36dB ± 2 Noise
Figure		 ≤ 1.5 dB Flatness
in Band		 ± 1 dB Operating
Voltage		 3.0 ~ 12.0
Operating
Voltage		 ≤ 35 mA VSWR ≤ 35 dB
Internal Antenna

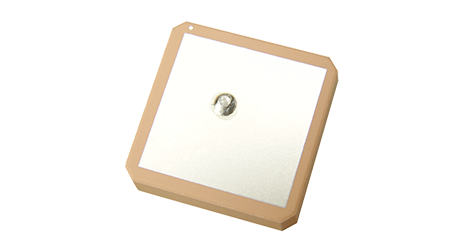

GPS Patch Antenna

Module
Model CV-PGSSAS-119, 120
Application BEIDOU, GPS, GLONASS
Structural Characteristics
Size[mm] 25.0 X 25.0 X 4.0 Connector SMA
Electrical Specification
BDEIDOU GPS GLONASS
Frequency Range 1559MHz 1563MHz 1575MHz 1595MHz 1608MHz
V.S.W.R 1.70:1 1.16:1 2.12:1 1.55:1 2.01:1
Gain Avg[dBi] -4.20 -3.38 -3.41 -3.08 -3.34
Gain Peak[dBi] 0.99 1.83 1.81 2.22 2.02
Polarization R.H.C.P
Impedance 50Ω
Mechanical Specification
NO Item Specification Remarks
1 Dielectric Constant Ceramic 43± DAONTEC
2 Probe Brass Silver Plated
3 Tape Acrylic 3M 468MP
4 Electrode Silver IMD
