Cubeview has established an infrastructure with domestic and international connector partners to provide solutions tailored to customer needs.

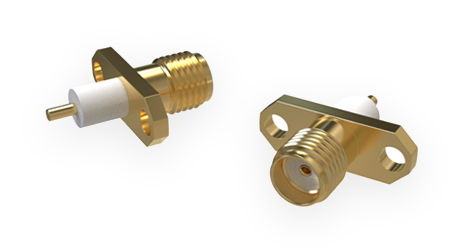

As a coaxial RF connector used in high-frequency applications, it is designed to provide a durable, safe, and stable connection between various devices such as antennas, cables, and electronic components.
| Frequency Range | DC ~ 18GHz | Impedance | 50 Ohm |
|---|---|---|---|
| Insertion Loss | 0.5 dB | V.S.W.R | 1.5 dB |
| Working Voltage | 335 VRMS MAX | Insulation Resistance | 5000 mOhm |
| Connector Body | Gold Plating | Connector Contact | Gold Plating |
| Insulator | PTFE | Connector Mating | 500 Cycles |

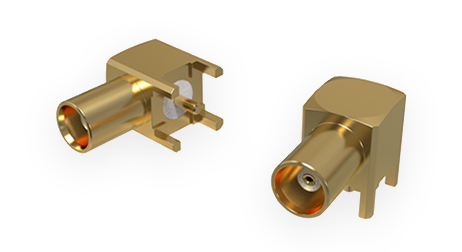

It is highly suitable for most applications where space, weight, size,
electrical characteristics, and ease of assembly are required.
| Frequency Range | DC ~ 6GHz | Impedance | 50 Ohm |
|---|---|---|---|
| Insertion Loss | 0.1 dB | V.S.W.R | 1.5 dB |
| Working Voltage | 250 VRMS MAX | Insulation Resistance | 1000 mOhm |
| Connector Body | Gold Plating | Connector Contact | Gold Plating |
| Insulator | PTFE | Connector Mating | 500 Cycles |

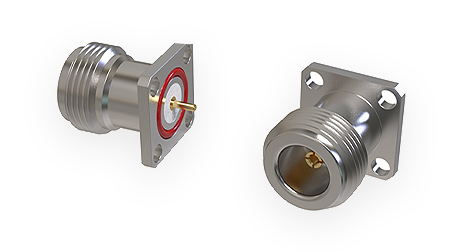

The N-type connector complies with MIL-C-39012 and is widely used in civilian industries, mainly suitable for base station equipment.
| Frequency Range | DC ~ 11GHz | Impedance | 50 Ohm |
|---|---|---|---|
| Insertion Loss | 0.15 dB | V.S.W.R | 1.5 dB |
| Working Voltage | 1000 VRMS MAX | Insulation Resistance | 5000 mOhm |
| Connector Body | Nicke Plating | Connector Contact | Gold Plating |
| Insulator | PTFE | Connector Mating | 500 Cycles |
